Mode Conditioning Patch Cable 10g

Things to know when using mode conditioning cables to patch an existing multimode cable plant to your gigabit lx equipment.

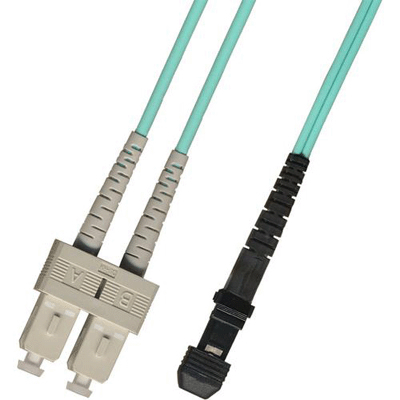

Mode conditioning patch cable 10g.

Cisco 10gbase sfp modules. This bulletin describes the necessary steps to help ensure that gigabit and 10 gigabit ethernet laser based transmissions over multimode fiber mmf are successfully implemented and supported. Operating at 1300nm and designed to prevent modal dispersion these cables are centerline offset spliced in a manner which the cores do not align center to center allowing the transition from singlemode to multimode. Mode conditioning cables installation.

Fs offers om1 om2 mode conditioning fibre optic patch leads mcp in any connector cable length optimal for eliminating differential mode delay effects. Hpe stands firm against racism and is committed to unconditional inclusion. Things to know when using mode conditioning cables to patch an existing multimode cable plant to your gigabit lx equipment. That means that you will need a mc cable at each end to connect the equipment to the cable plant.

When using 1000base lx lh 10gbase lx4 and 10gbase lrm transceivers with conventional 62 5 or 50μm multimode fiber the mode conditioning cable must be installed between the transceiver and the multimode fiber optic cable at both ends of the link. Cisco sfp modules offer the following features and benefits. We have a responsibility to shape a world that is equal for all people. Mode conditioning patch cord is not the same with common fiber patch cables so there are some cautions when using mode conditioning patch cable.

1 mode conditioning cable are normally used in pairs. Mode conditioning cables useful for running gigabit ethernet over existing multimode fiber optic plants. Industry s smallest 10g form factor for greatest density per chassis hot swappable input output device that plugs into an ethernet sfp port of a cisco switch no need to power down if installing or replacing supports pay as you populate model for investment protection and. Warnings in using mode conditioning patch cord.

Mode conditioning pm fiber lszh reversed polarity. Then 10gbase lx4 and 10gbase lrm modules can be the right path to 10g multimode on the premise that mode conditioning patch cord is used. Cisco transceiver modules and mode conditioning patch cables. Usually used in pairs mode conditioning cables usually require a mc cable at each end to connect the equipment to the cable plant.
